Theory of Resistors in Series and Parallel

Resistors are basic electronic components that resist the flow of current. When you connect them in series or parallel, their total resistance changes.

🔗 1. Resistors in Series

📌 Concept:

• In series, resistors are connected end-to-end.
• Current remains same through all resistors.
• Voltage gets divided across them.

🧮 Formula:

If you have resistors $\dots$ then:

$$\dots .$$

Just add all the resistance values — as simple as adding apples.

🔍 Example:

If you have:

• R1=10Ω
• R2=20Ω
• R3=30Ω

Then:

R_total=10+20+30=60Ω

🧲 2. Resistors in Parallel

📌 Concept:

• In parallel, resistors are connected side by side.

• Voltage across each resistor is the same.

• Current gets divided between them.

🧮 Formula:

If you have resistors R1,R2,R3..… then:

1/R_total=1/R1+1/R2+1/R3+……

Then take the reciprocal to find R_total.

✨ Shortcut for two resistors:

R_total=R1⋅R2/R1+R2​​

🔍 Example:

If you have:

• R1=10Ω
• R2=20Ω

Then:

1/R_total=1/10+1/20=3/20⇒R_total=20/3≈6.67Ω

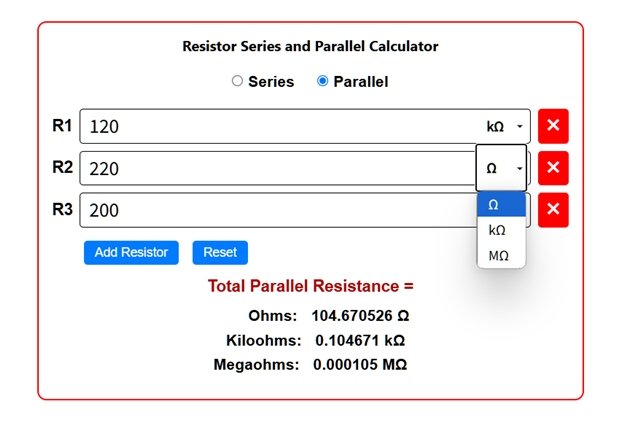

🔢 What This Calculator Does

1. Takes multiple resistor inputs (with values and units like Ohm, kΩ, MΩ).
2. Converts everything into Ohms internally.
3. Based on selected mode (series/parallel), applies the correct formula:

• Series: Adds all values.
• Parallel: Uses reciprocal sum.

Converts the result back into:

• Ohms
• Kiloohms (kΩ)
• Megaohms (MΩ)

Displays the result in all units neatly.
